High stability laser diode current source with current noise 10-15 µA
and TEC controller for precision maintaining temperature on peltier element with accuracy 0,01 °C.
Choose your model
Wide products range allows to choose
the optimal solution.
SF8XXX-XX
series name
LD current
mount type
Four models of laser diodes drivers with different maximum LD current.
LD
current
250mA
for SF8025
1500mA
for SF8150
750mA
for SF8075
3000mA
for SF8300
We use same powerful TEC controller
for all our models.
TEC
controller
up to
±4A
TEC current
up to
±4V
TEC voltage
NTC
10 kOhm
Sensor
Temperature control range
+15 to +40 °C
with temperature stabilization 0,01 °C
Seven modifications with different mounts, LD pinouts and LD connectors.
Mount
seven models
SF8XXX-10
for soldering 10-pin case type 1
SF8XXX-14
for soldering 14-pin case type 1
SF8XXXT-14
for soldering 10-pin case type 2
SF8XXX-ZIF10
with connectors for 10-pin case type 1
SF8XXX-ZIF14
with connectors for 14-pin case type 1
SF8XXXT-ZIF14
with connectors for 14-pin case type 2
SF8XXX-NM
without mount for all type LD
Laser diode driver butterfly package 10 -pin SF8XXX-10 overview maiman electronics pinout Type1
Laser diode driver butterfly package 10 -pin SF8XXX-10 overview maiman electronics pinout Type1
SF8XXX-10/14
10/14-pin type 1/type 2 pinout
Standard version have landing pads for soldering a butterfly laser diode directly into driver board. This is an optimal solution for integration into your devices or laser systems. 14-pin version have two modification with
Type 1 and Type 2 pinout configurations.
Laser diode driver butterfly package 14-pin SF8XXX-ZIF-14 Azimuth Electronics sockets overview maiman electronics pinout Type1 Type2
Laser diode driver butterfly package 10-pin SF8XXX-ZIF-10 Azimuth Electronics sockets overview maiman electronics pinout Type1
Laser diode driver butterfly package 14-pin SF8XXX-ZIF-14 Azimuth Electronics sockets overview maiman electronics pinout Type1 Type2
SF8XXX-ZIF10/14
10/14-pin type 1/type 2 pinout
ZIF Modification have an integrated Azimuth socket for quick LD replacement. This is an excellent solution for use in laboratory research and prototyping. 14-pin version have two modification with Type 1 and Type 2 pinout configurations.
Pinout Type 1 pumping SF8XXX
Pinout Type 2 telecom SF8XXXT
SF8XXX-NM
Universal solution without mount allows you to use this modification with any type of laser diode.
Features
Various features allow use laser diode drivers conveniently and safely.
Low-noise solution
Laser driver provides current ripple not more than 10-15 µA
All-in-One
Current source, TEC controller and
mount for Butterfly laser diode
Auto-tune PID controller
Integrated PID controller
that doesn't require setup
Multiple type of LD Protection
Over current protection
Adjustable current limit
Crowbar circuit protection
Thermal warning and shutdown
Free software
We provide free software for quick and easy start
Multiple control type
Anaolg control via 5V signal
Digital control: RS232/ UART/ USB
Trim Pot for LD Current and TEC Power
Easy control
It is easy to get started with our driver. Multiple control type allows to choose optimal solution for control driver.
Digital control
We provide wide range of digital interfaces RS232/ UART/ USB. You can create your own soft via command protocol or use our free soft.
Analog control
You need just 5V signals. A simple solution for integration in the big system.

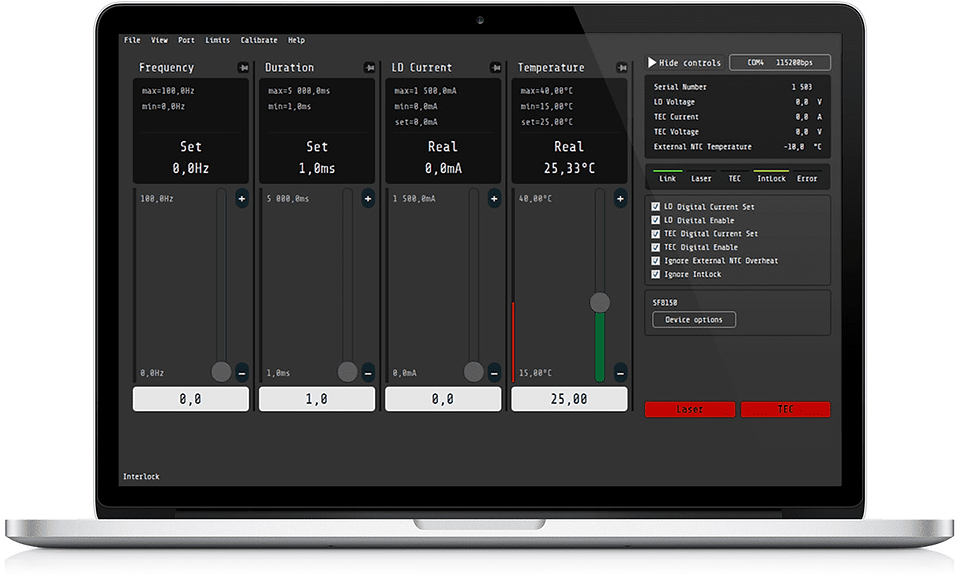

Free soft for fast start
Easy to start
It is easy to get started with our driver. Multiple control type allows to choose optimal solution for control driver.
Install the laser diode.Remove driver short jumper before turning on the driver.
1
Connect 5V input power supply.
2
Connect UART/USB adapter.
RUN our own free software
to control driver.
3
