LASER DIODE CURRENT & VOLTAGE

  • Output Current Range (I): 0-250 Аmps
  • Output Voltage (0.67*Vin max) (V): 1-10 Volts
  • Minimum Current Set-Point Step Size: 0.1 Amps
  • Rise Time: (Iout = 125A) min - 300μs; max - 800μs
  • Rise Time: (Iout = 250A) min - 250μs; max - 650μs

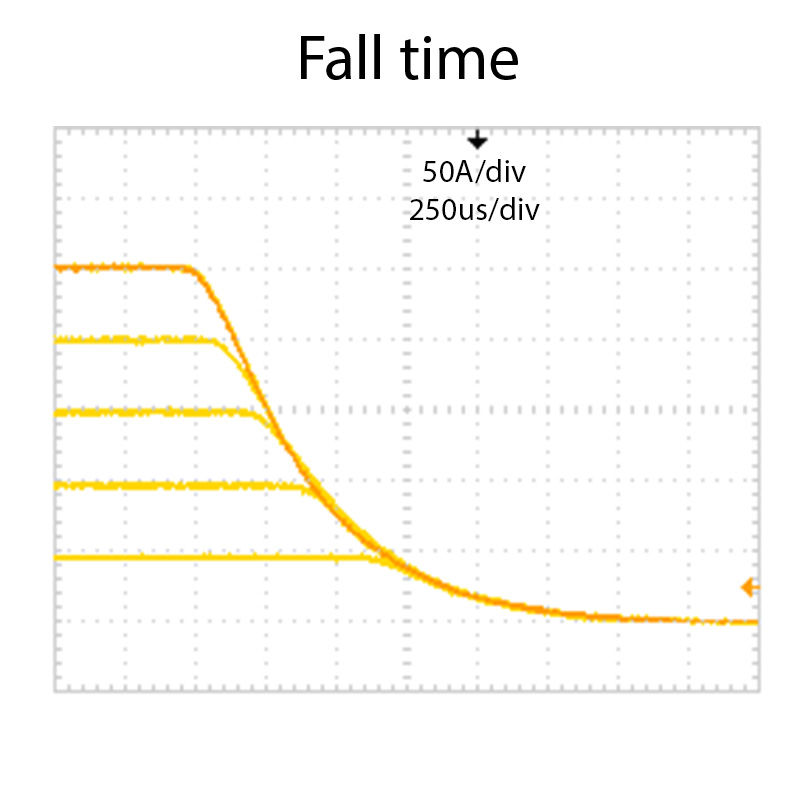

  • Fall Time: min - 400μs; max - 1200μs
  • Current Stability: <0.2 %
  • Current Setpoint Absolute Accuracy: <1 %

LASER DIODE PROTECTION

  • Soft-Start Current Ramp to User Set-Point
  • User Adjustable Current Limit
  • Over-Current Protection Shutdown
  • Over-Temperature Warning & Shut-Down
  • Reverse Current Protection
  • Crowbar Circuit Protection
  • Disable Input
  • Interlock

DIMENSIONS AND WEIGHT

  • Dimensions: 116.8 mm x 61 mm x 26 mm
  • Weight: 394 g

USER INTERFACE

  • Analog Control Signal Connector
  • RS-232 / UART Serial Digital Interface (USB as a paid option 20 €)
  • Enable / Disable Input Signal Input

DRIVER INPUT

  • Input Voltage Range (Vin): 10 VDC ~ 15 VDC

PACKAGE  SET

  • Driver – 1 pcs
  • 50 cm ribbon cable with one 8-pin connector – 1 pcs
  • 50 cm ribbon cable with one 14-pin connector – 1 pcs
  • Wires fixing set – 1 pcs
  • Datasheet & User Manual – 1 pcs

WARRANTY PERIOD

  • 1-year manufacturer's warranty

High Current Laser Diode Driver CW 250А 10V SF6250 v0.1

1,200.00€Price
  • ULTRA-COMPACT: 116.8mm x 61mm x 26mm
  • Very High efficiency up to 97%
  • NTC thermistor input (for shutdown driver when the laser diode was overheating)
  • Analog Control Signal/ RS-232 / UART (USB as a paid option 20 €)
  • Soft-Start Current Ramp to User Set-Point
  • Possibility to calibrate current within 5%
  • Multiple Layers of Laser Diode Protection
  • Free software
