CURRENT, VOLTAGE & TEC CONTROLLER

  • Maximum current LD (I): 250 mА; 750 mA; 1500 mA
  • Output voltage LD (V): 0.5-3 V
  • Current stability: 0.1 %
  • Current set accuracy: 1 %
  • Output current noise: 10-15 µA
  • ТЕС output power: ±4А
  • TEC output voltage: ±4V
  • TEC output current ripple: 2-4mА
  • TEC Feedback Sensor: 10 kOhm NTC
  • Temperature Control Range: +15 to +40 °C

LASER DIODE PROTECTION

  • Current limit
  • Temperature limit
  • Reverse current protection
  • ESD and transient protection
  • Soft-start laser diode current ramp.

PINOUT

  • SF8XXX support laser diode Type 1: Pump Laser Diode
  • SF8XXXT support laser diode Type 2: Telecom Laser Diode

DIMENSIONS AND WEIGHT

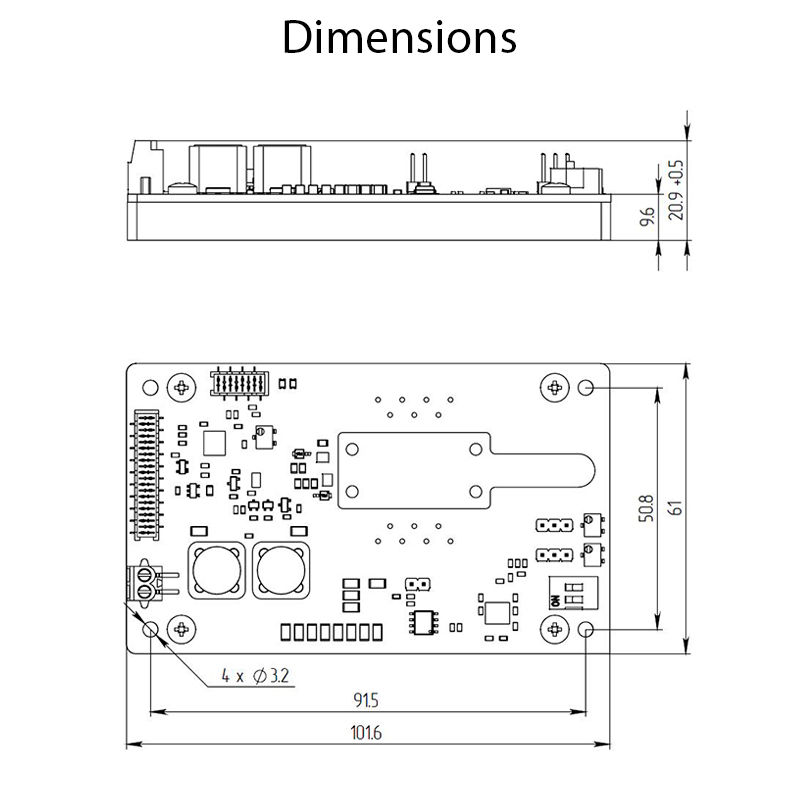

  • Dimensions 101.6 x 61 x 20 mm
  • Weight: 136 g

USER INTERFACE

  • Trim Potentiometers for Driver Current and TEC Power
  • Analog
  • RS-232 / UART Digital Interface (USB as a paid option 20 €)

INPUT

  • Input voltage range (Vin): 5 V

PACKAGE SET

  • Driver – 1 pcs
  • 50 cm ribbon cable with one 8-pin connector – 1 pcs
  • 50 cm ribbon cable with one 20-pin connector – 1 pcs
  • Datasheet & User Manual – 1 pcs

WARRANTY PERIOD

  • 1-year manufacturer's warranty

    Laser Diode Driver with TEC for Butterfly LD 14 pin SF8XXX-14

    400.00€Price
    Output current LD
    Pinout
    • All-in-One Current Source, Temperature Controller and Mount for Butterfly LD
    • Compatible with Type 1 and Type 2 Butterfly 14-pin Laser Diode (depending on the model)
    • Low current ripple: ≤ 10uA
    • Current stability < 0.1%
    • Integrated PID controller, doesn't require setup
    • Soft-Start Current Ramp, Current Limit, Temperature Limit for Laser Diode Protection
    • Free software
    Price and Delivery Quote
